U bolts without lining

APPLICATION :

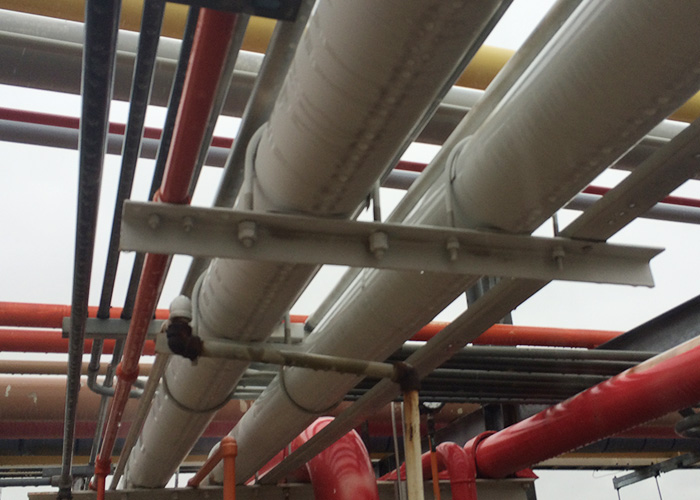

U-BOLTS are used to secure piping to structural members. When the piping is below the structural member, the U-Bolt provides vertical support and restricts lateral movement while allowing for axial movement. When the piping system is above the structural member, the U-Bolt restricts lateral movement and upward movement while allowing axial movement of the piping.

CONSTRUCTION :

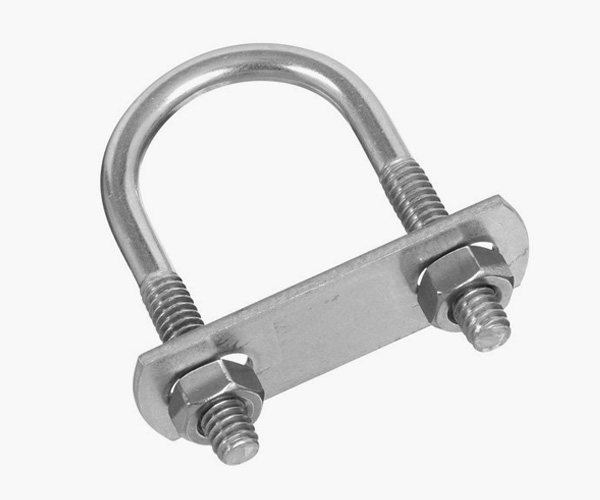

U-Bolt is provided with four standard hex nuts and has a longer straight threaded length.

MATERIAL :

Mild Steel. Also other materials can be provided on request

APPROVALS :

ANSI/MSS SP-58 & SP-69(Type 24)
Federal Specification WW-H-171E & A-A-1192A (Type 24)

MAXIMUM TEMPERATURE :

399°C (750°F)

FINISH AVAILABLE :

Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
