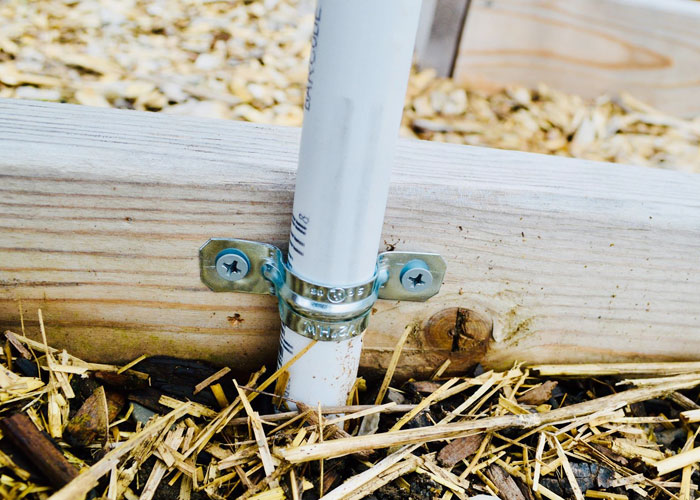

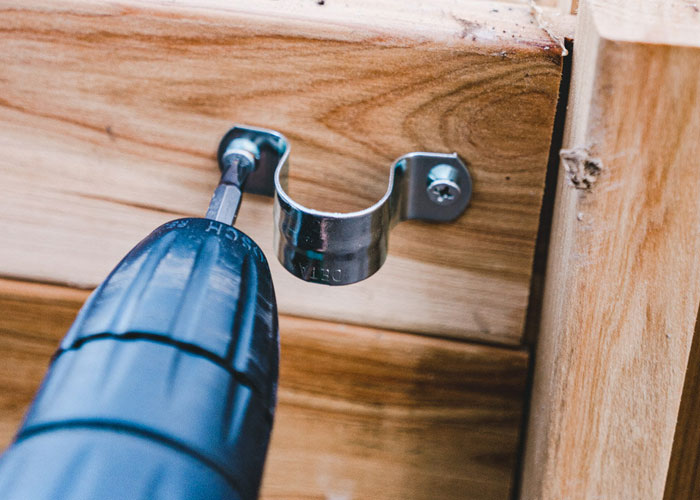

A standard pipe strap is recommended for supporting a piping system with fittings vertically or horizontally to walls or ceilings. It can be used as a restrainer when installed on top of structural wood beams for beam, for limiting pipe movements due to thrust loads during sprinkler system start-up.

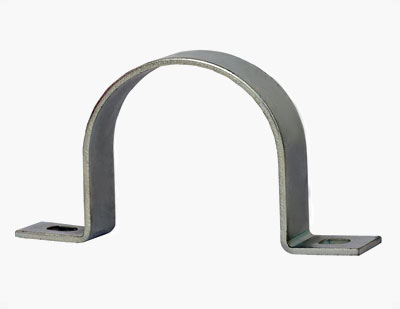

A standard Pipe Strap consists of a piece of mild steel shaped to hold the pipe down to walls or ceilings.
Mild Steel. Also other materials can be provided on request
ANSI/MSS SP-58 & SP-69 (Type 26)
Federal Specification WW-H-171E & A-A-1192A (Type 26)
343°C (650°F)
Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake, & Epoxy Coated.
| PRODUCT CODE | NOMINAL PIPE SIZE | PIPE OD | HANGER DIMENSION (MM) | BOLT SIZE | MAX LOAD | ||
|---|---|---|---|---|---|---|---|
| IN. | MM | (MM) | OVERALL DIMENSION (A) |
DISTANCE BETWEEN TWO BOLT (B) |
(MM) | (KG) | |
| TGUS0000E0022 | 1/ 2” | DN15 | 21.3 | 76 | 51 | M8 | 500 |
| TGUS0000E0027 | 3/ 4” | DN20 | 26.7 | 82 | 57 | M8 | 500 |
| TGUS0000E0034 | 1" | DN25 | 33.4 | 89 | 64 | M8 | 500 |
| TGUS0000E0042 | 1 1/ 4” | DN32 | 42.1 | 96 | 71 | M8 | 500 |
| TGUS0000E0048 | 1 1/ 2” | DN40 | 48.2 | 102 | 77 | M8 | 500 |
| TGUS0000E0054 | - | - | 54 | 108 | 83 | M8 | 500 |
| TGUS0000E0060 | 2” | DN50 | 60.3 | 114 | 89 | M8 | 500 |
| TGUS0000E0067 | - | - | 67 | 121 | 96 | M8 | 500 |
| TGUS0000E0073 | 2 1/ 2” | DN65 | 73.0 | 145 | 113 | M8 | 600 |
| TGUS0000E0082 | - | - | 82 | 152 | 120 | M8 | 600 |
| TGUS0000E0089 | 3” | DN80 | 88.9 | 160 | 128 | M8 | 600 |
| TGUS0000E0102 | 3 1/ 2” | DN90 | 101.6 | 170 | 138 | M8 | 600 |
| TGUS0000E0108 | - | - | 108 | 178 | 146 | M8 | 600 |
| TGUS0000E0114 | 4” | DN100 | 114.3 | 185 | 153 | M8 | 600 |
| TGUS0000E0126 | - | - | 126 | 196 | 164 | M8 | 600 |
| TGUS0000E0141 | 5" | DN125 | 141.3 | 210 | 178 | M10 | 600 |
| TGUS0000E0148 | - | - | 148 | 218 | 186 | M10 | 600 |
| TGUS0000E0155 | - | - | 155 | 225 | 193 | M10 | 600 |
| TGUS0000E0168 | 6” | DN150 | 168.3 | 237 | 205 | M10 | 600 |
| TGUS0000E0179 | - | - | 179 | 249 | 217 | M10 | 600 |
| TGUS0000E0190 | - | - | 190 | 260 | 228 | M10 | 800 |
| TGUS0000E0205 | - | - | 205 | 275 | 243 | M10 | 800 |
| TGUS0000E0219 | 8” | DN200 | 219.1 | 289 | 257 | M10 | 800 |
| TGUS0000E0230 | - | - | 230 | 300 | 268 | M10 | 800 |
| TGUS0000E0241 | - | - | 241 | 332 | 291 | M12 | 1250 |
| TGUS0000E0263 | - | - | 263 | 354 | 313 | M12 | 1250 |
| TGUS0000E0273 | 10" | DN250 | 273.0 | 364 | 323 | M18 | 1250 |
| TGUS0000E0295 | - | - | 295 | 386 | 345 | M18 | 1250 |
| TGUS0000E0323 | 12” | DN300 | 323.8 | 417 | 376 | M18 | 1250 |
| TGUS0000E0356 | 14” | DN350 | 355.6 | 447 | 409 | M18 | 1800 |
| TGUS0000E0374 | - | - | 374 | 465 | 427 | M18 | 1800 |
| TGUS0000E0406 | 16” | DN400 | 406.4 | 497 | 459 | M18 | 1800 |
| TGUS0000E0432 | - | - | 432 | 523 | 485 | M18 | 1800 |
| TGUS0000E0457 | 18” | DN450 | 457.2 | 547 | 509 | M18 | 1800 |
| TGUS0000E0482 | - | - | 482 | 573 | 535 | M18 | 1800 |
| TGUS0000E0508 | 20” | DN500 | 508.2 | 599 | 561 | M18 | 1800 |
| TGUS0000E0533 | - | - | 533 | 624 | 586 | M18 | 1800 |
| TGUS0000E0559 | - | - | 559 | 650 | 612 | M18 | 1800 |
| TGUS0000E0583 | - | - | 583 | 674 | 636 | M18 | 1800 |
| TGUS0000E0610 | 24” | DN 600 | 609.6 | 701 | 663 | M18 | 1800 |
| TGUS0000E0658 | - | - | 658 | 766 | 721 | M18 | 2300 |
| TGUS0000E0690 | - | - | 690 | 798 | 753 | M18 | 2300 |
| TGUS0000E0760 | - | - | 760 | 868 | 823 | M18 | 2300 |
| TGUS0000E0863 | - | - | 863 | 971 | 926 | M18 | 2300 |
| TGUS0000E0918 | - | - | 918 | 1026 | 981 | M18 | 2300 |
* U Strap of all Non Standard Sizes to fit upon Rubber Support Insert can be manufactured.
